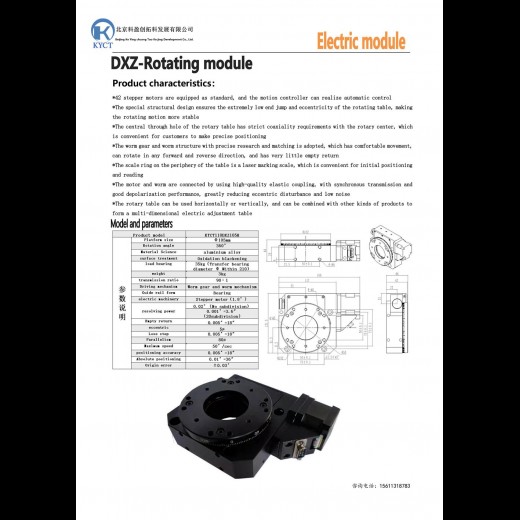

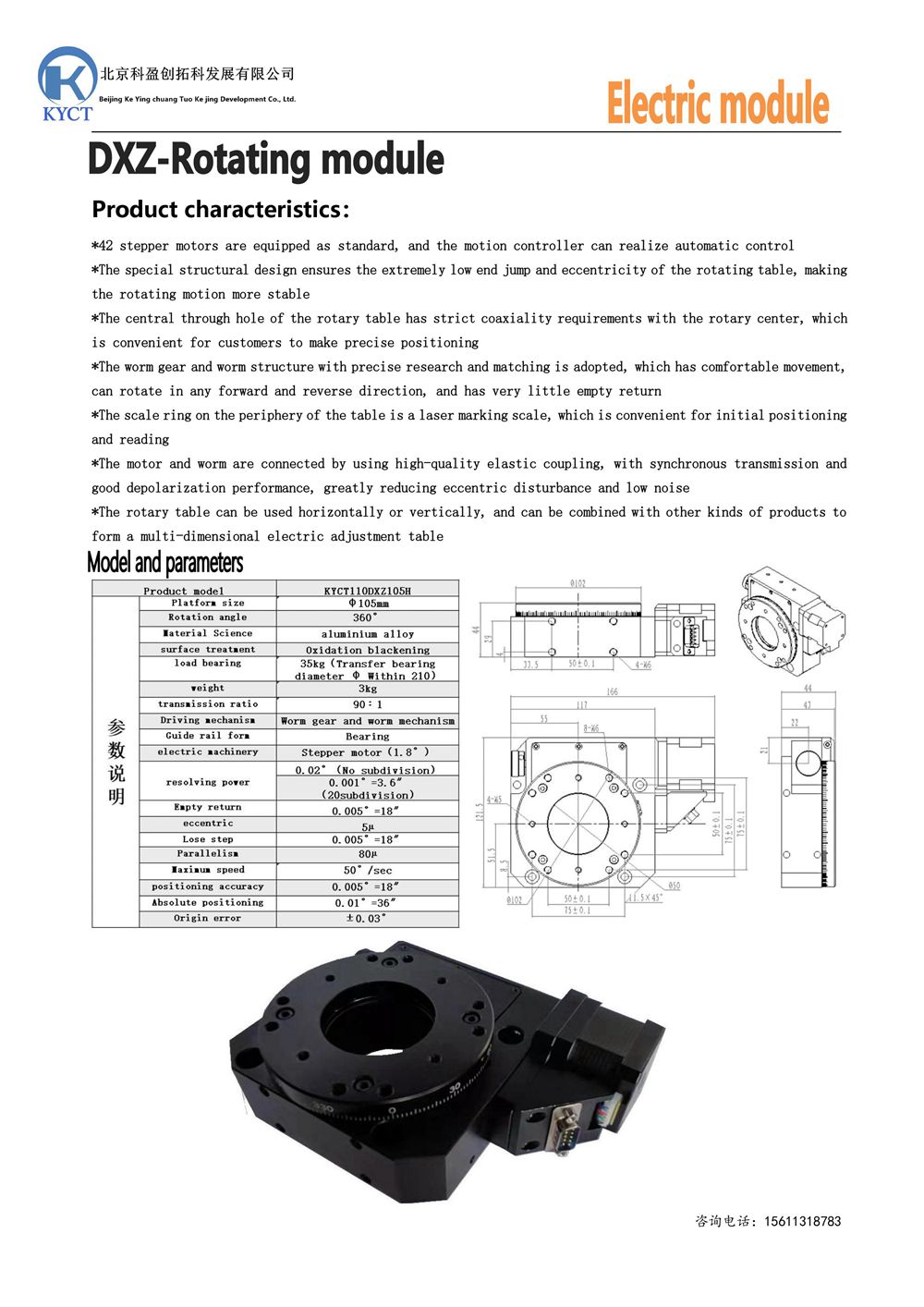

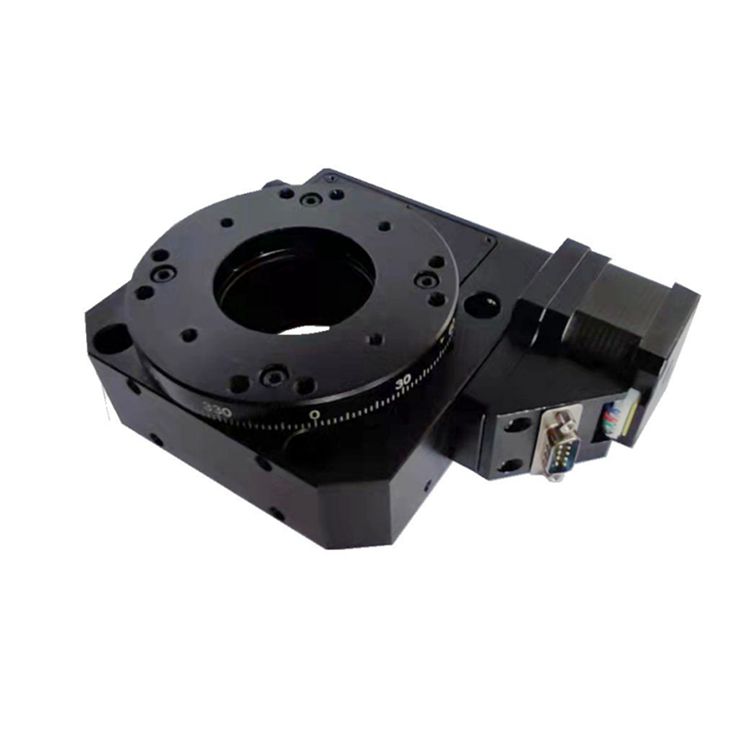

Rotating module

Product characteristics：

*42 stepper motors are equipped as standard, and the motion controller can realize automatic control

*The special structural design ensures the extremely low end jump and eccentricity of the rotating table, making the rotating motion more stable

*The central through hole of the rotary table has strict coaxiality requirements with the rotary center, which is convenient for customers to make precise positioning

*The worm gear and worm structure with precise research and matching is adopted, which has comfortable movement, can rotate in any forward and reverse direction, and has very little empty return

*The scale ring on the periphery of the table is a laser marking scale, which is convenient for initial positioning and reading

*The motor and worm are connected by using high-quality elastic coupling, with synchronous transmission and good depolarization performance, greatly reducing eccentric disturbance and low noise

*The rotary table can be used horizontally or vertically, and can be combined with other kinds of products to form a multi-dimensional electric adjustment table
